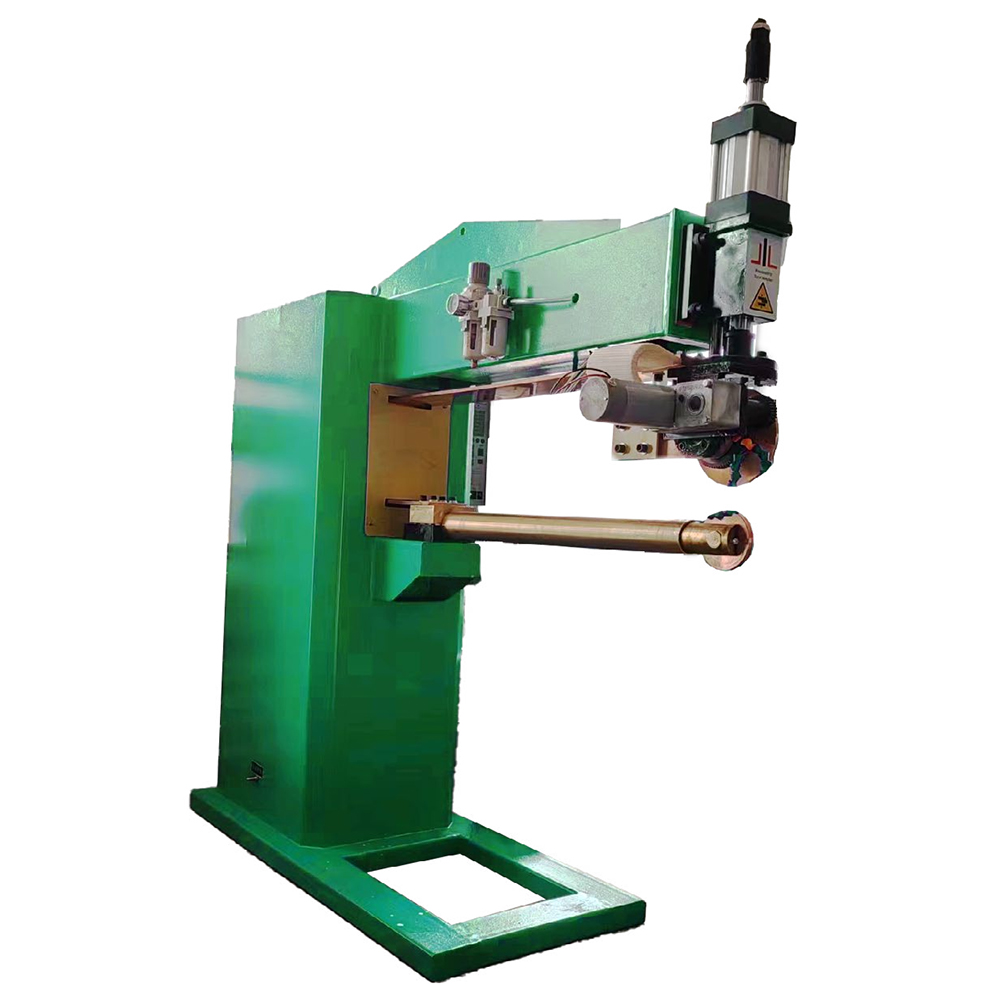

Round Duct Welding Machine

Description

Product Description

There are two basic types: transverse seam welding and longitudinal seam welding. The machine can have both horizontal and vertical seam welding functions. As long as the direction of the upper electrode wheel is changed and the lower electrode arm is replaced, the switching of the two welding methods can be completed in a few minutes. Single wheel drive ensures consistent tangential speed between the upper and lower wheels. Widely used in metal manufacturing and processing industries such as hardware, household appliances, automobiles, motorcycle fuel tanks, basin making, and can making.

Performance Feature

1.The welding host adopts a cantilever structure, and the two cantilever beams are annealed and stress relieved after welding, ensuring that the crossbeam does not deform for a long time;
2.The pneumatic key type compression structure is tightly arranged along both sides of the straight seam, and the butt weld seam is uniformly compressed throughout the entire welding length range; The spacing between the left and right keys can be adjusted to adapt to the welding of different workpieces;
3.According to the thickness size of the workpiece, airbag or cylinder type can be used, with sufficient clamping force to prevent thermal deformation during the welding process;
4.The welding core shaft is embedded with copper molds, providing gas protection for the weld seam; Process different welding process slots according to the cylinder or flat workpiece to achieve single-sided welding and double-sided forming;
5.The distance between the welding core shaft and the piano key pressing finger is adjustable, which can adapt to different workpiece welding requirements;
6.The welding gun is driven by a DC servo motor supplier, with gear and rack transmission. The track surface is ground and processed, ensuring smooth walking and stable welding.
7.All gas pipes and cable suppliers are placed inside the drag chain, with a clean and beautiful appearance, while avoiding cable breakage.

Machine Parameters
