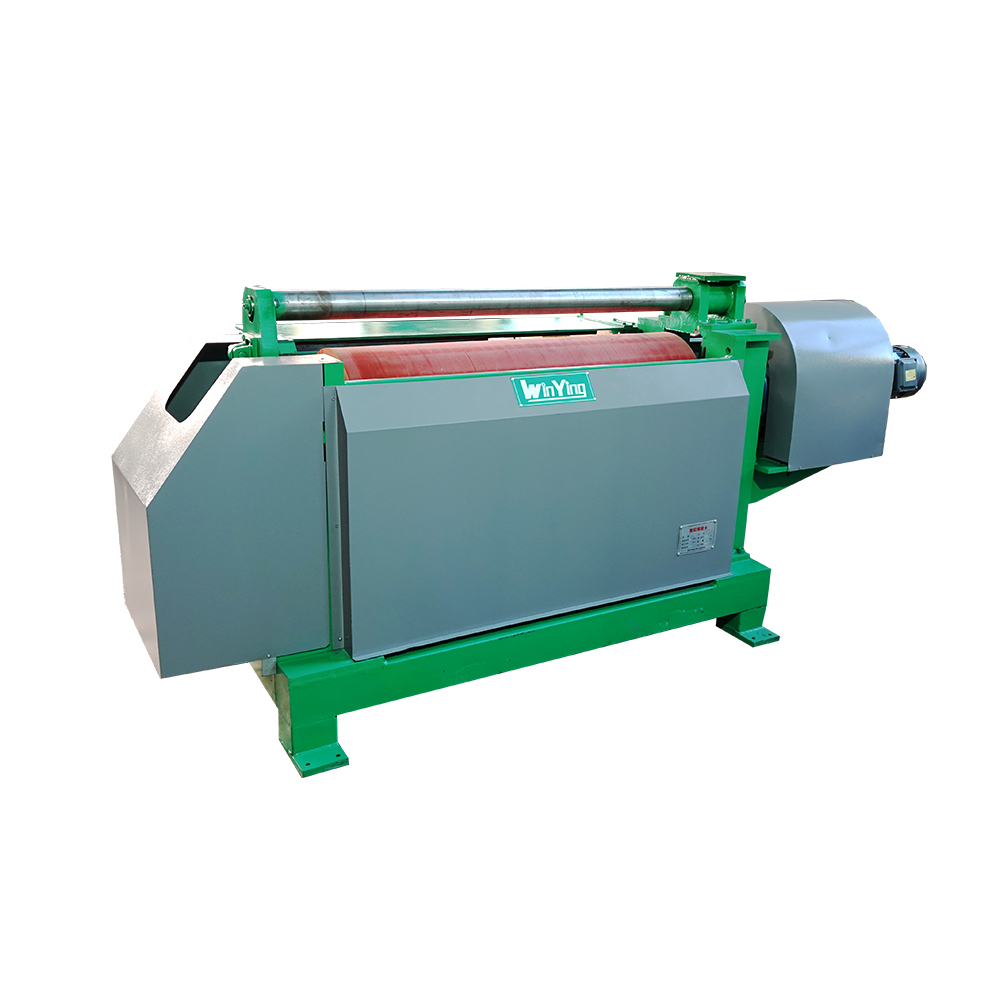

NC Rolling Machine

Product Description

NC rolling machine processable diameter Φ150, Φ180, Φ200, Φ250, Φ300, Φ400, Φ600, Φ800, Φ1000, Φ1200; processable thickness is 3 mm (order support thickness 4-6 mm); width 300 ~ 1500 mm (order support 2100 mm). It is widely applied to the production of various cylindrical bodies in industries such as ventilation ducts, chimneys, solar water heaters, kitchen utensils, fans, fire fighting apparatus and automobiles, which are applied to the cylindrical winding production of metal materials such as stainless steel, galvanized plate, carbon steel, aluminum and copper. This machine has the features of high product precision, no scratches on the surface, no remaining straight edges, high production efficiency, etc. Steel sheets pass through steel rolls between steel rolls (passive rolls) rubber rolls (active rolls), and the rubber roll elastic layer forms a concave shape to bend and roll form steel sheets.

Performance Feature

Winding circle accuracy is relatively higher than other types of winders, with no obvious straight edges at the seams and higher circularity, All plate materials, including various mirror surfaces and plating layers, can be processed without damage. After the material is fed into the machine, it is formed once, eliminating the need for pre-bending and saving a large amount of time in other processes. LCD touch panel display, one-touch operation, inexperienced requirements, low labor intensity. It is a highly automated reel processing facility with high production efficiency, high accuracy, and high automation.

Machine Parameters
